Webdesk 4

General

This article describes the steps required to install a Webdesk 4.x.

Steps in Detail

File used for the installation: setup-webdesk-xxxx-xx-bit.exe

Double-click to start the installation.

• Select language: German or English

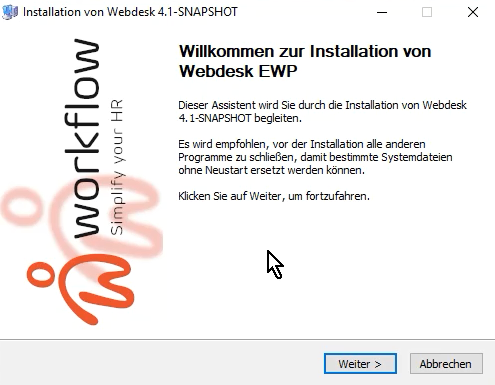

• The welcome screen appears --> Next

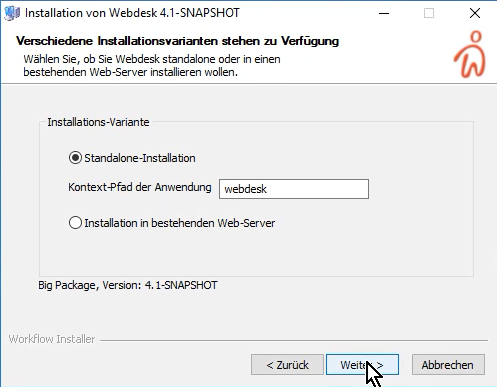

• Select installation variant:

  • • Standalone installation
      with application context path: webdesk
      Standalone is selected if no other web server is to run on this device
    • Installation in an existing web server
      This installation is selected if a server with a Tomcat already exists Select Standalone, then continue

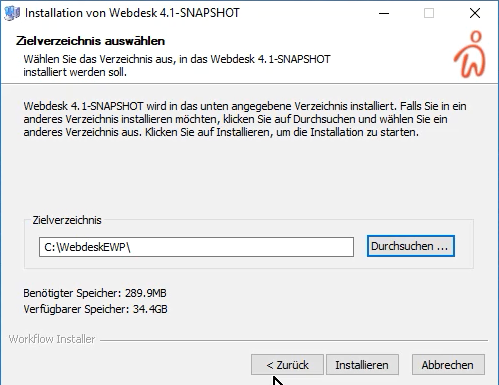

• Select target directory - C:\WebdeskEWP - install

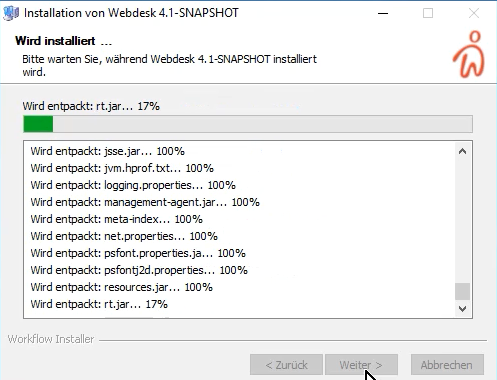

• Webdesk is installed

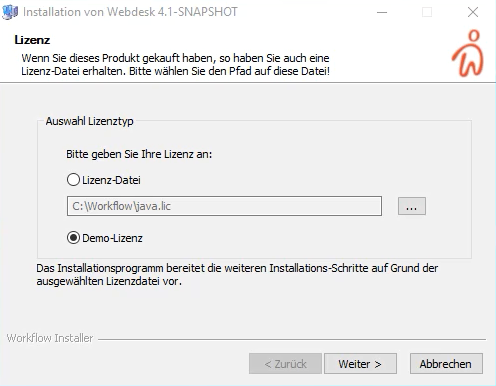

• Select license

  • • License file (text field with chooser)
      The license must be requested from Workflow
    • Demo license Select the license, then Next

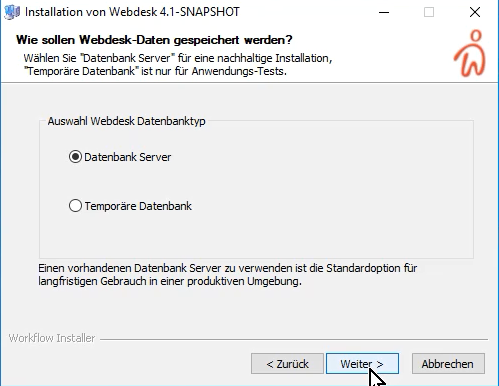

• Select Webdesk database type

  • • Database server
      Select this option if permanent operation is desired (separate SQL Server, etc.)
    • Temporary database
      These are included in the Webdesk setup, but lose their entries as soon as Webdesk is shut down Select Database server, then Next

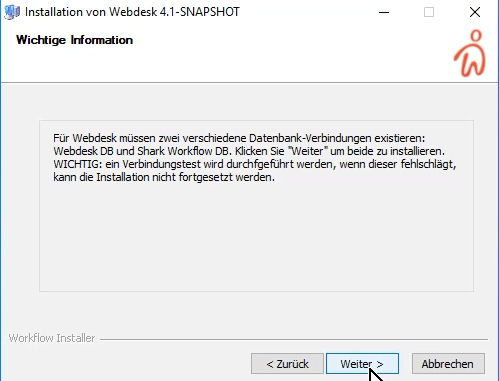

• Important information about the databases appears --> Next

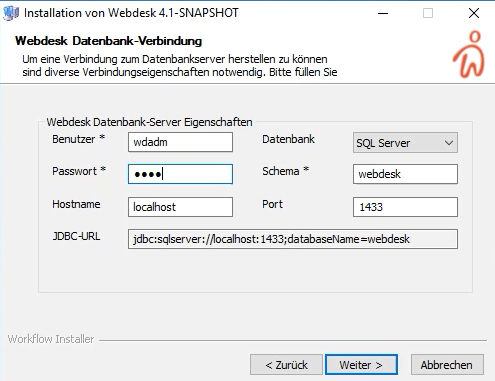

• Webdesk database connection


  • User: wdadm
  • Password: wdadm
  • Hostname: localhost
  • Database: SQL Server
  • Schema: webdesk
  • Port: 1433
  • JDBC URL: jdbc:sqlserver://localhost:1433;databaseName=webdesk
  • Next

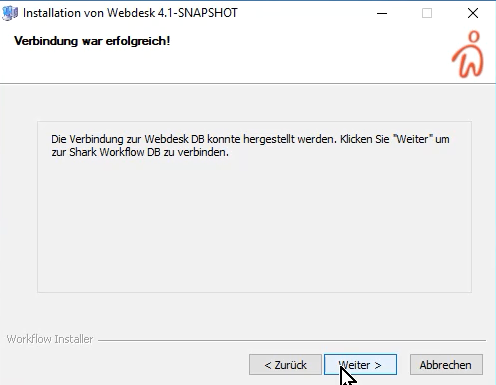

• The connection was successful! --> Next


• Shark database connection


  • User: wdadm
  • Password: wdadm
  • Hostname: localhost
  • Database: SQL Server
  • Schema: webdesk
  • Port: 1433
  • JDBC URL: jdbc:sqlserver://localhost:1433;databaseName=shark
  • Next

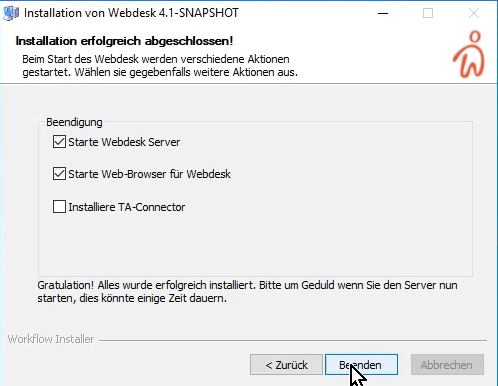

• Installation completed successfully!


  • "Start Webdesk Server" is checked
  • "Start web browser for Webdesk" is checked
  • Finish

• A window with Webdesk opens in the web browser

• In the services, check whether the Webdesk server is running

• Open the properties of the Webdesk server and change the startup type to Automatic - Apply - OK

• Log in as administrator in the browser window
